November 13, 2025

Technical Breakdown: Solving the Cybertron Labs Search Impasse

When Cybertron Labs engaged us, their core engineering program was at a standstill. A mission-critical RAG system, intended to query a complex requirements database, had failed. This was not a minor bug; it was an operational gridlock that threatened their timeline, their client commitments, and their core competitive advantage.

Their team, comprised of exceptional engineers, had made several intelligent but ultimately unsuccessful attempts to solve the problem. This is a common scenario. Most engineering failures do not stem from a lack of talent, but from a misdiagnosis of the problem's fundamental truth. Our task was not merely to fix a system, but to apply First Principles Engineering: to strip away every flawed assumption, diagnose the true nature of the challenge, and architect a definitive solution.

This is a technical breakdown of that process.

Chapter 1: The Diagnosis – Uncovering the Root Cause of the Gridlock

Cybertron's objective was precise: enable an AI to query a database of thousands of interconnected technical requirements and retrieve the exact, correct information. The data was not unstructured text; it was a graph of dependencies and specifications where absolute accuracy was paramount.

Analyzing their internal attempts was key to our diagnosis.

Attempt 1: The Generic RAG

Cybertron’s first implementation was a standard RAG pipeline built with LangChain.

The Logic: Use an LLM to convert a user's question into a search query, feed it to a generic vector retriever, and pass the results to the LLM for synthesis.

# A simplified representation of Cybertron's initial approach
def get_retrieval_executor(llm, retriever, ...):
    # ...
    async def get_search_query(messages):
        # Turns conversation history into a single search string
        # ...
        response = await llm.ainvoke(prompt)
        return response.content

    async def retrieve(messages):
        # ...
        query = json.loads(params['arguments'])['query']
        response = await retriever.ainvoke(query) # The core retrieval step
        return msg
    # ...
    workflow.add_edge('invoke_retrieval', 'retrieve')
    workflow.add_edge('retrieve', 'response')
    app = workflow.compile(...)
    return app

The Diagnosis: The approach failed because the tool was fundamentally mismatched to the task. Engineering requirements are dense and specific.

1. Semantic Ambiguity: A query like "braking system performance specs" is too vague for pure vector search. The retriever returned a mix of design specs, testing protocols, and safety constraints, unable to differentiate REQ-BRAKE-PERF-001 from REQ-BRAKE-TEST-001. It lacked precision.
2. Structural Blindness: The retriever was a black box. It had no concept of the parent-child relationships between requirements and could not follow a dependency graph.
3. The Misdiagnosis: The problem was framed as a semantic search problem. At its core, it was a structured data retrieval problem.

Attempt 2: The Knowledge Blob Mapper

Recognizing the need for structure, the team engineered a custom graph-like system called "Knowledge Blobs."

The Logic: Create a tool that an LLM could use to manually traverse this graph, specifying a starting initial_node and a traversal shape (e.g., 'branch').

# A simplified view of the Knowledge Blob traversal logic
class KnowledgeBlobRun(BaseTool):
    def _run(
        self,
        initial_node: Optional[str],
        shape: Optional[str],
        map_type: Optional[str],
        # ...
    ) -> str:
        # ...
        center_blob_queue = [center_blob]
        while len(knowledge_map) < BLOB_NUM and center_blob_queue:
            current_center_blob = center_blob_queue.pop()
            # ...
            new_blobs = [
                blob
                for blob in crud_knowledge_blob.get_multi_by_parent(...)
            ]
            if shape == 'sphere' and current_center_blob.parent_id:
                # ... Add parent blobs
            # ...
            center_blob_queue.extend(new_blobs)
        # ...
        return prompts.knowledge_tool_knowledge_map.format(...)

The Diagnosis: This solution created a different set of critical flaws.

1. Brittle and Imperative: The system forced the LLM to act like a programmer, dictating how to search, not what it needed. This created a fragile interface that broke with any slight deviation in the LLM's output.
2. Unscalable Architecture: The traversal logic was in the application layer, performing iterative database calls in a while loop. This approach does not scale. Query latency would become untenable.
3. Misplaced Intelligence: The logic for navigating the data resided in the Python tool, not in an optimized search index. They had built a complex, slow state machine for the LLM to operate remotely.

Attempt 3: The LLM-as-Filter

The team's final attempt was to present a list of summaries to the LLM and ask it to choose the relevant ones.

The Logic: Fetch a broad list of "blob" summaries, present them in a single prompt, and ask the LLM to filter them.

# Simplified logic for the LLM-as-Filter approach
blob_ids, usage = await utils.generate_llm_response(
    'You are an expert... Pick the blobs that you need to unpack...\n'
    'blobs ids:\n'
    f'{blobs}\n'
    # ...
    'Response Schema:\n'
    '{"unpack_blobs_id": [integer, ...]}',
    # ...
)

The Diagnosis: This created a fatal bottleneck.

1. Context Window Limitation: The number of summaries that can be passed to an LLM is severely limited. This approach was unworkable for any realistically sized database.
2. Loss of Fidelity: Relying on summaries reintroduced the precision problem from the first attempt.
3. Circular Dependency: The system needed to know which blobs were relevant to fetch them, in order to ask the LLM which were relevant. It could only filter, not discover.

The impasse was clear. The root cause was a consistent misdiagnosis of the problem.

Chapter 2: The Enigma Intervention – Architecting a Definitive Solution

Our methodology is not to iterate on a flawed foundation. We establish the fundamental truth of the problem and build the correct system.

The First Principle: High-precision information retrieval is a solved problem. It requires a dedicated, optimized search engine, not a conversational tool. The solution was not to build a better tool for the LLM, but to build a system that delivered definitive answers directly.

We architected and deployed a standalone, high-performance hybrid search service. This was not a component in their RAG pipeline; it was a piece of core infrastructure that replaced their entire retrieval mechanism.

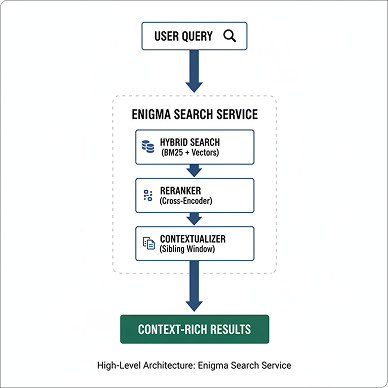

Here is the architecture of that solution.

1. The Hybrid Retrieval Core (BM25 + Dense Vectors)

To deliver certainty, a search must understand both keywords and intent. We built a system that does both.

• Sparse Retrieval (BM25): We implemented BM25, a keyword search algorithm that ensures queries with specific technical IDs (e.g., ISO 26262) will precisely match documents containing those exact terms. This is critical for accuracy.
• Dense Retrieval (Vector Search): We used the BAAI/bge-m3 model to generate embeddings for every document chunk. These are stored in a FAISS index for high-speed semantic search, finding documents that are conceptually similar even without matching keywords.

The Fusion: Results from both retrievers are combined using Reciprocal Rank Fusion (RRF), a technique that prioritizes documents ranking highly in both searches.

2. Multi-Stage Document Processing & Refinement

An engine is only as good as its index. We implemented a rigorous pipeline to optimize the data for retrieval.

• Intelligent Semantic Chunking: Instead of naive, fixed-size chunks, we implemented a semantic chunker. This process splits documents at points of low semantic cohesion, ensuring complete specifications remain in the same chunk.

  # High-level logic of the semantic chunker
  def _semantic_chunker(text, state, ...):
      sentences = nltk.tokenize.sent_tokenize(text)
      embeddings = _bencode(state, sentences, ...)
      # Calculate similarity between adjacent sentences
      similarities = [np.dot(embeddings[i], embeddings[i+1]) for i in ...]
      # Find points where similarity drops, indicating a topic shift
      breakpoint_threshold = np.percentile(similarities, ...)
      split_indices = [i + 1 for i, s in enumerate(similarities) if s < breakpoint_threshold]
      # Create chunks based on these split points
      # ...
      return chunks



• Query Expansion: A T5 model automatically expands the initial query with relevant synonyms. braking performance might become braking performance deceleration standards stopping distance requirements, broadening the search without losing precision.

• Cross-Encoder Reranking: After retrieving initial candidates, a BAAI/bge-reranker-v2-m3 model directly compares the query against each document, providing a highly accurate final relevance score. This is performed only on the top candidates to ensure both speed and certainty.

3. Context-Aware Retrieval

A single retrieved chunk is often insufficient. Our service solves this with a sibling_window parameter. When a chunk is identified as highly relevant, the service automatically retrieves its preceding and succeeding chunks from the original document, ensuring the final output is a coherent, contextually complete section.

Why the Enigma Architecture Succeeded

Our architecture succeeded because it was a direct correction of the fundamental flaws we diagnosed.

1. Solved: Ambiguity and Lost Detail with Hybrid Search

• The Flaw: Pure vector search couldn't distinguish between technically distinct requirements. Summaries lost critical detail.
• Our Solution: Our hybrid architecture uses BM25 for keyword precision and dense vectors for conceptual meaning. By fusing the results, the system finds what is exactly right and what is conceptually right, then prioritizes the intersection. This provides a definitive relevance score.

2. Solved: Brittle Tool-Use with a Declarative API

• The Flaw: The "Knowledge Blob" tool forced the LLM to dictate an imperative sequence of steps, creating a fragile interface.
• Our Solution: Our service provides a simple, declarative API. The calling system states what it wants (the query), not how to get it. The complexity of traversal, fusion, and ranking is abstracted inside the optimized service. The result is a robust and maintainable architecture.

3. Solved: Unscalable Design with Pre-Computed Indices

• The Flaw: The custom solution performed lookups via slow, iterative database calls at query time. This is a classic architectural anti-pattern for search.
• Our Solution: Our engine performs this work once, during an offline indexing process. The corpus is pre-processed into highly optimized data structures (an inverted index for BM25, a FAISS index for vectors). Queries become sub-second operations against in-memory data, not slow database traversals.

4. Solved: Structural Blindness with Multi-Stage Retrieval

• The Flaw: The original RAG retrieved disconnected chunks, losing essential context.
• Our Solution: Our multi-stage process—Retrieve, Rerank, and then Contextualize with the sibling_window—re-assembles the local document structure around the point of highest relevance. This delivers a complete and actionable block of information, not just a snippet.

This principled approach to system design transformed the problem from an unsolvable impasse into a core operational asset.

Chapter 3: Execution & Outcome – Precision and Pace

This entire search engine was deployed as a robust, scalable FastAPI service, leveraging optimized libraries like Numba for performance-critical code and running on GPU-accelerated hardware. It is a piece of industrial-grade infrastructure, not a script.

The Outcome: Within 72 hours of our engagement, we had diagnosed the root cause and deployed an initial version of the search service. The impasse was broken.

The final results were definitive:

• 80% Reduction in time spent on low-value, repetitive engineering tasks.
• 32+ Hours Freed Up per engineering team, per week, for high-value work.
• 60% Increase in overall engineering productivity and innovation capacity.

Cybertron’s team was no longer trying to force a generic tool to solve a specific problem. They now had a definitive, purpose-built system that delivered the exact data they needed with speed and reliability.

Conclusion: From Technical Liability to Competitive Advantage

The Cybertron Labs engagement is a clear demonstration of our core philosophy. The initial problem was not a failing RAG pipeline; that was merely a symptom. The fundamental problem was a misdiagnosis of the information retrieval challenge itself.

By applying First Principles Engineering, we stripped away the flawed assumptions and identified the core requirement: a high-precision, hybrid search engine. We then architected and deployed that definitive solution.

What was once Cybertron's most significant technical liability has been transformed into one of their core competitive advantages. This is the embodiment of our process. We diagnose the fundamental truth, architect a resilient solution, and deploy mission-critical systems with precision and pace. We deliver certainty when technical failure is not an option.
